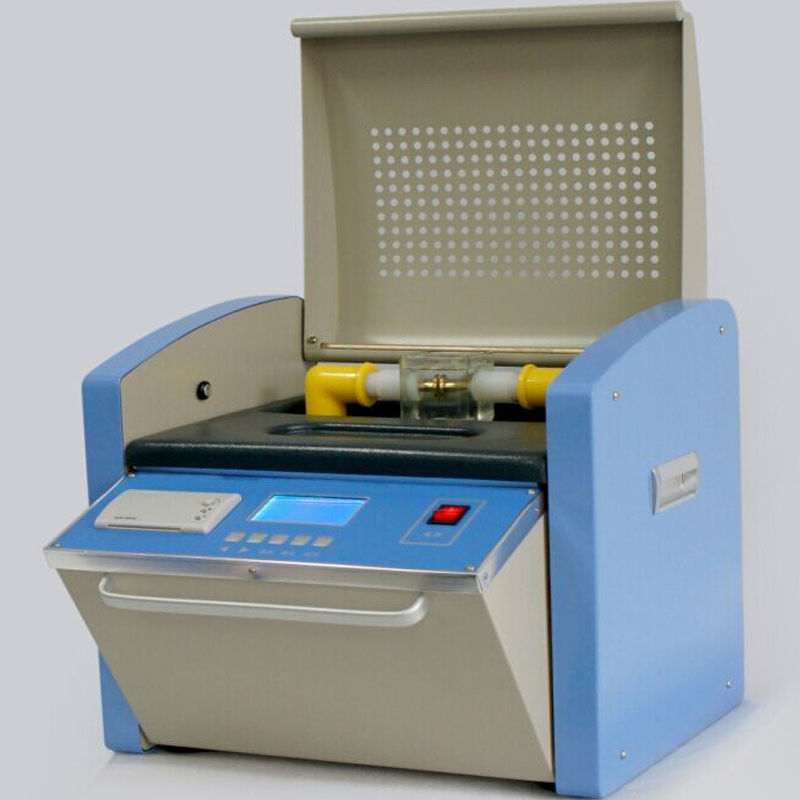

Transformer Oil Dielectric Strength Test Kit

Insulation Oil Dielectric Strength Test Kit

Features

• With microprocessor, automatically fulfill the test for oil circulation with a range of 0～80KV
• Large screen LCD display
• Automatically complete withstand-voltage test of oil after simple setting
• Can save breakdown voltage value (1 to 6 times) and recurrent times
• With in-built thermal printer, which can print each breakdown and average voltage value
• Can save 100 pcs test results
• Can display current ambient temperature and humidity
• Adopt a single-chip microcomputer to boost the voltage at an even speed.
• Equipped with over-voltage, over-current and limit protections to ensure the safety of operators
• With the function of displaying the measured temperature and system clock.
• Communicate with computer with a standard RS232 interface

Applications
Testing of insulating liquids in transformers, bushings, switchgear, capacitors and hydraulics

Major Technical Index

• Output voltage: 0～80KV (100kv optional)
• Voltage distortion rate: ＜3%
• Voltage rising speed: 0.5～5KV/S (adjustable)
• Standing time: 15min (adjustable)
• Boosting interval: 5 min (adjustable)
• Boosting frequency: 1～6 time(s) (optional)
• Booster capacity: 1.5KVA
• Measuring accuracy: ±3％
• Supply voltage: AC240V±10% 50Hz±1Hz
• Power consumption: 200W
• Oil volume:400 ml
• Applicable temperature: 0℃～45℃
• Applicable humidity: ＜75%RH

Overall dimension: 465×385×425
